Effect of ZrO₂–Y₂O₃ powder morphology on CMAS resistance of thermal barrier coatings

Introduction

The efficiency of gas turbine engines (GTEs) is directly related to the gas temperature at the inlet of the high-pressure turbine (HPT), which exceeds 1200 °C [1; 2]. Such high operating temperatures impose stringent requirements on the protection of components made of heat-resistant alloys used in GTEs. Thermal barrier coatings (TBCs), applied to turbine blades and vanes as well as combustion chamber components, reduce the temperature by approximately 100 °С [3–6].

Modern TBCs consist of an outer ceramic layer and an intermediate metallic bond coat based on nickel superalloys. The outer ceramic layer must combine a range of high-temperature properties, including low thermal conductivity in the operating temperature range, high resistance to thermal shock, phase and structural stability, a high coefficient of thermal expansion, and strong adhesion to the bond coat [7–10]. In current aerospace engine manufacturing, yttria-stabilized zirconia (YSZ) is employed as the outer ceramic layer. This material exhibits low thermal conductivity (2.3 W/(m²·K) at 1000 °C) for a dense ceramic, a high melting point (2680 °C), and a favorable coefficient of thermal expansion (11·10^–6 K^–1 at ~1000 °C) [5; 11].

It should be noted that YSZ coatings are susceptible to failures, which are classified as internal and external. Internal failures include defect formation due to phase transformation or excessive temperature gradients during sintering [12]. External failures are usually associated with TBC damage caused by erosion from small (<75 µm) solid particles in the environment or from foreign object damage. Such fine particles typically enter GTEs from dust storms, volcanic ash, and airport runways, where their concentration is relatively high and generally ranges from 350 to 13,000 µg/m³ [13].

These particles penetrate into the low-pressure compressor and eventually reach the combustion chamber. Under high operating temperatures, they melt, decompose, and deposit on component surfaces, leading to structural degradation and chemical alteration of the TBC. The particles mainly consist of CaO–MgO–Al₂O₃–SiO₂ compounds (Calcium–Magnesium–Alumina–Silicate – CMAS). Their detrimental effects on aircraft engine components are well established. Therefore, further research is required to better understand the mechanisms of CMAS interaction with HPT blade coatings [14–16].

Deposition of ceramic top coats for TBCs is carried out using electron-beam physical vapor deposition (EB-PVD) and atmospheric plasma spraying (APS). APS has become the primary method for applying multilayer TBCs due to its high deposition rate, a wide range of adjustable process parameters, relative cost-effectiveness, and suitability for a broad spectrum of powder feedstocks [17–21]. By injecting powders into the plasma jet with a carrier gas, the porosity of the resulting TBC can be controlled. APS technology thus provides flexibility in tailoring the microstructure, particularly of ceramic coatings. The most common microstructure is lamellar, containing microcracks and about 15 % porosity [5; 8].

Coatings produced by APS can develop either porous microstructures or dense ones with vertical cracks. The properties of the feedstock powders play a decisive role in achieving effective TBCs. Typically, the particle size of APS powders ranges from 10 to 100 µm. Oversized particles often fail to melt completely, while undersized ones may bypass the plasma jet and remain in cooler regions, leading to insufficient heating during spraying.

Powder morphology has a strong influence on both processing behavior and in flight dynamics in the plasma jet. To tailor coating properties and functionality, ceramic powders are prepared using methods such as melt crushing, agglomeration–sintering, and agglomeration–spheroidization. These processes produce powders with distinct morphologies: fractured, spherical, or hollow spherical [22–25].

The role of powder morphology in determining resistance to CMAS corrosion has not been adequately investigated and remains a critical issue. The present work therefore aimed to examine the structural and phase evolution of powders with different morphologies, used for TBC deposition, under high temperature exposure to CaO–MgO–Al₂O₃–SiO₂ glass melts. The findings provide insight into the mechanisms of phase evolution in stabilized zirconia powders and lay the groundwork for further studies on full thermal barrier coating systems.

Materials and methods

As starting materials, we used thermal barrier ceramic powders based on yttria stabilized zirconia (YSZ):

– Z7Y10-80A (T: SP LLC, Russia) – agglomerated, sintered, and crushed powder with fractured morphology;

– Zr7Y20-60 (T SFERA LLC, Russia) – agglomerated and sintered powder with spheroidal morphology;

– Metco 204NS (Oerlikon Metco, USA) – agglomerated, plasma treated (HOSP) powder with hollow spherical morphology.

The particle size distribution of the YSZ powders was determined by laser diffraction (Analizette 22 NanoTech, Fritsch, Germany) and is summarized in Table 1.

For CMAS investigations, a model glass was prepared. According to X-ray fluorescence analysis (EDX 800HS spectrometer, Shimadzu, Japan), its composition was (wt. %): SiO₂ – 53.3, CaO – 30.4, Al₂O₃ – 10.7, MgO – 5.4. The glass was first ground in a jasper mortar and then milled in a planetary ball mill in water for 2 h at a rotation speed of 160 rpm. The dried powder was sieved. Its chemical composition closely matched the CMAS glass reported in the literature [26–28], which represents the average composition of deposits found on turbine blades in service (SiO₂ – 48.5, CaO – 33.2, Al₂O₃ – 11.8, MgO – 6.5 wt. %). Simultaneous thermal analysis (ZCT H, Jing Yi Gao Ke) showed that melting started at 1200 °C and reached its maximum at 1244 °C.

Model samples for studying CMAS infiltration and microstructural evolution were fabricated by pressing YSZ powders followed by sintering. For binder preparation, a 4% polyvinyl alcohol solution (GOST 10779-78) was added in an amount corresponding to 10 wt. % of the powder. Pressing was performed on a manual hydraulic press (Carl Zeiss, Germany) under a specific pressure of 1.5 t/cm2. Sintering was carried out in a HT 64/17 furnace (Nabertherm, Germany) at 1700 °C for 2 h.

On the surface of the sintered samples (Z7Y10-80A, Zr7Y20-60, and Metco 204NS), a suspension of CMAS powder in ethanol was applied at a loading of 20 mg/cm². High temperature tests of the samples with surface applied suspensions were performed in air in the HT 64/17 electric furnace. The heating rate was 10 °C/min, and the exposure temperature ranged from 1200–1300 °C with holding times ranging from 2 to 24 h.

To analyze high temperature chemical reactions between YSZ and CMAS in more detail, powder mixtures were prepared at a 3:1 ratio. The mixtures were homogenized in ethanol, dried, and pressed into pellets at 50 MPa, followed by isothermal treatment at 1200–1300 °C for 2 h.

Microstructural analysis of cross sections was performed using a scanning electron microscope (SEM EM 30AX, Coxem Co. Ltd., Republic of Korea) equipped with an energy dispersive spectrometer (EDS). Phase composition and structural parameters were determined on an X-ray diffractometer (XRD 6000, Shimadzu, Japan) using full profile analysis. Diffraction patterns were recorded over a 2θ range of 20–90° with CuKα radiation, a step size of 0.02°, and a counting time of 2 s per step. Qualitative phase analysis was carried out using the Crystallographica Search Match (CSM) program and the PDF database of the International Centre for Diffraction Data (ICDD).

Results and discussion

Structure of YSZ ceramic powders

Analysis of the particle size distribution (Table 1) showed that the average particle sizes of powders Z7Y10-80A and Metco 204NS are comparable, with d₅₀ values of 48.9 and 41.9 µm, respectively. However, Z7Y10-80A contains the largest fraction of fine particles compared with the other powders. The smallest average particle size, d₅₀ = 28.1 µm, was observed for Zr7Y20-60.

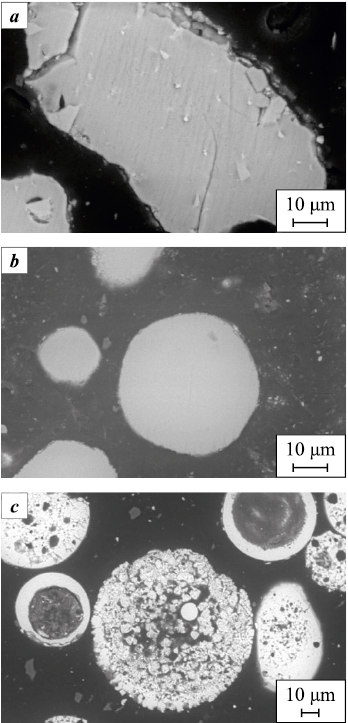

SEM images of powder morphology and cross-sections are presented in Fig. 1. Based on morphometric parameters, Z7Y10-80A exhibits a fractured morphology, Zr7Y20-60 is nearly spherical, and Metco 204NS is predominantly hollow spherical. Particles of all powders, except Metco 204NS, are porous throughout their volume. Metco 204NS contains both hollow spherical particles and non hollow porous particles similar in structure to the other powders. The shells of the hollow spheres are notably denser compared to the non hollow particles.

XRD analysis (Fig. 2) showed that the Z7Y10-80A and Zr7Y20-60 powders are composed of tetragonal ZrO₂ (space group P4₂/nmc, No. 137). The results of Rietveld full-profile refinement of the structural parameters and phase composition are presented in Table 2. The lattice parameters of the tetragonal phase are nearly identical to the reference values (PDF card No. 80-2155). The Metco 204NS powder consists of tetragonal (P4₂/nmc, No. 137) and monoclinic ZrO₂ (P2₁/c, No. 14) in proportions of 79 and 21 %, respectively. The smallest crystallite size was observed for Z7Y10-80A, while the largest was for Metco 204NS. The evaluation of lattice microstrain da/a indicated the highest distortions in Z7Y10-80A, which can be attributed to mechanical crushing.

XRD analysis of the model samples sintered at 1700 °C for 2 h showed that their phase composition did not differ from that of the as received powders.

The mechanism of interaction between YSZ ceramics and CMAS has been widely investigated and described in numerous studies [13; 15; 26; 27; 29–31]. In general, YSZ dissolves into the CMAS melt, followed by the reprecipitation of ZrO₂ grains in various polymorphic forms and compositions, depending on the local melt chemistry. Since Y³⁺ ions have much higher solubility in CMAS than Zr⁴⁺ ions, they readily diffuse into the melt, leading to zirconia depletion. This depletion facilitates the phase transformation of YSZ from tetragonal to monoclinic.

Interaction of Z7Y10 80A with CMAS

The interaction of CMAS with ceramic powders begins at temperatures below the melting point of the glass due to the formation of a eutectic in the SiO₂–CaO–Al₂O₃ system [29; 32]. As a result, regardless of particle morphology, interaction with CMAS is already observed at 1200 °C.

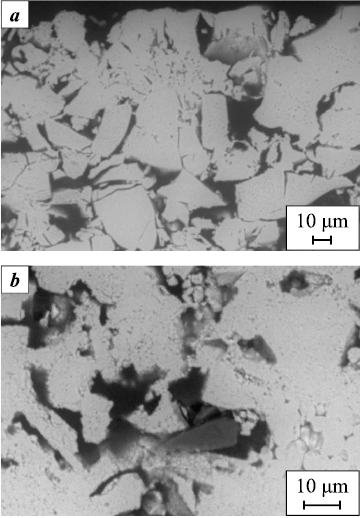

As shown above, the particles of the Z7Y10-80A powder (Fig. 1, a) possess a dense structure determined by the production method, which strongly influences their interaction with CMAS. At 1200 °C, interaction is confined to a near-surface layer up to ~2 µm thick, while the dense particle structure remains largely intact (Fig. 3, a). When the temperature is raised to 1300 °C, dissolution/precipitation processes in YSZ are activated, resulting in loosening of the particle structure (Fig. 3, b). The glass melt penetrates from the interparticle space into the particle interior, causing the particle boundaries to blur.

Since the sensitivity of XRD to detect subtle phase composition changes during CMAS interaction is relatively low when glass is simply applied to the surface of Z7Y10-80A, additional mixed samples with a Z7Y10-80A:CMAS ratio of 3:1 were prepared. These were heated in air at 1200, 1250, and 1300 °C for 2 h. This approach enabled a more precise analysis of the CMAS–ceramic interaction mechanisms.

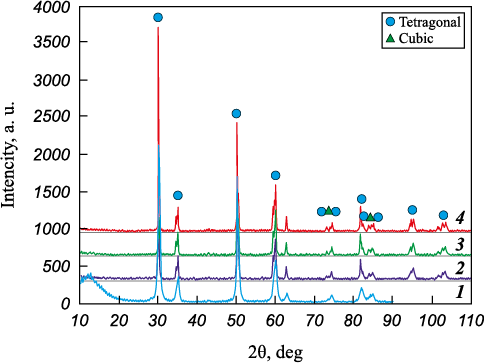

Fig. 4 shows the XRD patterns of the Z7Y10-80A:CMAS samples after exposure to these temperatures. The incorporation of 6–8 wt. % Y₂O₃ into ZrO₂ results in the formation of a metastable tetragonal t′-phase (the so called non transformable phase), in contrast to the less stable tetragonal t-phase. To distinguish between the two tetragonal modifications (t and t′), the c/a\(\sqrt 2 \ ratio – reflecting the degree of tetragonality – is used. For the t′-phase, this ratio approaches 1.010 [33].

The as received Z7Y10-80A powder consists of tetragonal zirconia, with no characteristic doublets observed at 2θ ≈ 35° and 60°. After testing, the XRD patterns clearly show peak splitting at these angles, along with the emergence of the cubic (400) reflection in the 2θ range of 72–76°. In the as received powder, the degree of tetragonality was 1.0116 and remained unchanged after exposure at 1200 °C. Raising the temperature to 1250 °C led to an increase in tetragonality, associated with yttrium depletion in YSZ, i.e., the decomposition of the t-phase into t- and c-phases.

At 1300 °C, counter diffusion of Ca and Mg from the glass into YSZ causes a reduction in tetragonality, although it does not return to its original value (Table 3). The variation in tetragonality as a function of yttrium content is consistent with the findings reported in [34], where it was shown that, irrespective of the synthesis method, the tetragonal character of YSZ powders diminishes with increasing yttrium content.

Interaction of Zr7Y20-60 with CMAS

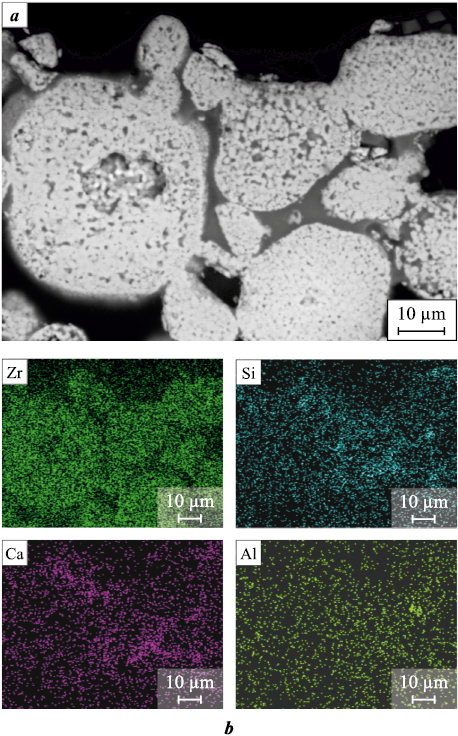

The Zr7Y20-60 ceramic particles have a porous surface surrounding a dense core (Fig. 1, b). This morphology makes them prone to CMAS melt infiltration, not only into the macropores but also deeper into the particle volume. Interaction between YSZ and CMAS is already evident at 1200 °C (Fig. 5), and at 1300 °C it becomes more pronounced, with the boundaries between individual ceramic grains disappearing and an extensive reaction zone forming.

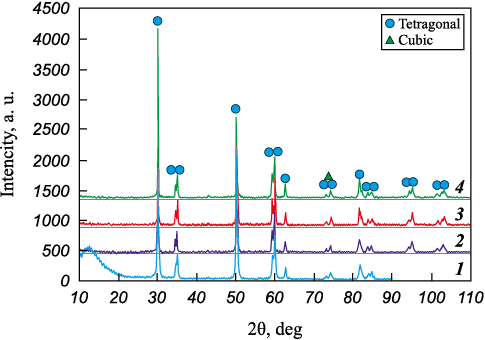

The as received Zr7Y20-60 powder consists of tetragonal zirconia; however, the characteristic doublets are already distinguishable at 2θ ≈ 35° and 60° (Fig. 6). After exposure at 1200 °C, these doublets become clearly resolved. As the temperature increases, the degree of tetragonality rises from 1.0112 to 1.0143 (Table 3). At 1300 °C, the emergence of the cubic phase is indicated by the appearance of the (400) peak between the tetragonal (004) and (220) reflections.

Interaction of Metco 204NS with CMAS

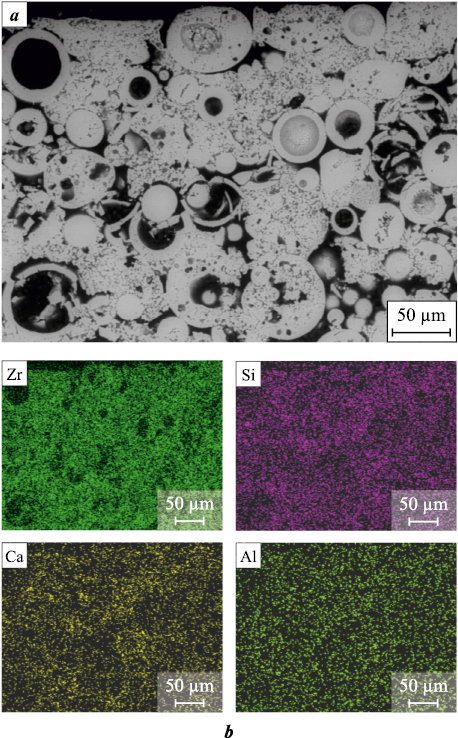

The Metco 204NS ceramic powder consists of both hollow spherical particles with a dense shell and non hollow particles with a porous structure. The latter interact most intensively with CMAS due to glass infiltration (Fig. 7). As the temperature increases to 1300 °C, the boundaries between individual non hollow particles gradually disappear, leading to the formation of an extensive reaction zone. In contrast, the dense shells of the spherical particles remain the most resistant to CMAS attack up to 1300 °C, preserving their structural integrity.

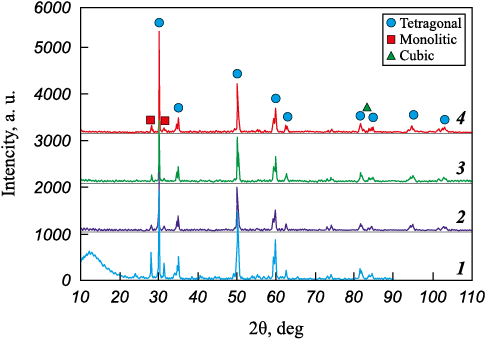

XRD analysis revealed that after CMAS corrosion testing the monoclinic phase fraction (m-ZrO₂) decreased from 20.6 to 10.0 % (Fig. 8). This was accompanied by a reduction in the intensity of the (\(\bar 1\)11) and (111) reflections and an increase in the degree of tetragonality (see Table 2). These changes are attributed to additional stabilization of zirconia by calcium and magnesium oxides. At 1300 °C, the cubic (400) reflection was also detected.

Conclusion

The study of CMAS interaction with TBC ceramics based on Z7Y10-80A, Zr7Y20-60, and Metco 204NS powders using model samples has demonstrated that the interaction mechanism between CMAS and YSZ is the same for all yttria containing ceramics. It is governed by the dissolution–precipitation of zirconia in the glass melt. Exposure to CMAS at 1200–1300 °C leads to the formation of a new yttria depleted tetragonal zirconia phase as a result of yttrium diffusion into the glass. With increasing temperature, the degree of tetragonality changes due to further yttrium depletion. However, the counter diffusion of Ca and Mg ions from the glass into zirconia is insufficient to restore the initial tetragonality values. As a result, zirconia may undergo polymorphic transformation accompanied by volume expansion, cracking, and eventual spallation of the TBC.

The extent and character of CMAS–YSZ interaction were shown to depend strongly on the structure and morphology of the ceramic particles. A dense particle structure, as in ceramics produced from Z7Y10-80A and Metco 204NS powders, reduces CMAS infiltration, whereas the more porous structure of Zr7Y20-60 particles promotes deeper penetration and more extensive interaction.
