Mechanical properties of the VZh159–CuCr1Zr alloy multi-material samples manufactured by selective laser melting

Introduction

Additive manufacturing (AM) has become widely prevalent in high-tech industries such as petrochemicals, manufacturing, and power generation, among others [1]. One contributing factor is that AM processes can yield geometrically-complex products at a lower manufacturing cost compared to conventional methods [2]. To fabricate products from metals and alloys, diverse At can be employed. These include extrusion and deposition, laminated object manufacturing, binder jetting, direct deposition, and template-assisted synthesis. The latter involves building parts from 3D models by fusing thin layers of metal powder with an energy source [3–5].

Selective Laser Melting (SLM) is particularly notable for its ability to produce parts with variable chemical composition and enhanced performance [6]. Such products can be categorized into two groups: Functionally Graded Materials (FGM) and multi-materials [7]. Chen K. et al. [8] conducted a study on the 316L/CuSn10 multi-material system (316L being an austenitic stainless steel, and CuSn10 a tin bronze) using the SLM process. They successfully manufactured compact samples devoid of macrocracks in the interface zone. Their findings revealed a gradual decrease in Vickers microhardness from 330 HV in the 316L region to 173 HV in the CuSn10 region. The tensile and flexural strengths of the 316L/CuSn10 multi-material samples fell within the strength values for 316L and CuSn10, respectively. The shear stress of the 316L/CuSn10 sample measured 210 MPa, surpassing that of the same alloy manufactured by alternative processes.

Chen J. et al. [9] conducted a study on the same multi-material system and process. The Vickers microhardness perpendicular to the transition ranged from 230 HV in the 316L region to 155 HV in the CuSn10 region. The ultimate strength of the 316L/CuSn10 multi-material samples was measured at 420 MPa. Fracture curves indicated brittle fracture in the interface zone. SEM analysis revealed a width of approximately 550 μm for the interface zone, containing dendritic crack sources towards the steel interface.

Mei X. et al. [10] manufactured SLM samples and studied the 316L/IN718 system, where IN718 is an Inconel 718 heat-resistant nickel alloy. These samples exhibited an ultimate strength of 600 MPa and a relative elongation of 28 %. Optical microscopy, SEM, and energy-dispersive spectroscopy studies unveiled an interface zone width of approximately 100 µm, characterized by the occurrence of cracks and defects. It was suggested that to mitigate these defects, adjustments to 3D printing conditions should be made in the transition area for 316L/IN718 alloy multi-material samples.

Yusuf S. et al. [11] conducted similar studies, successfully producing compact samples with low porosity (~0.81 % on average). Metallographic analysis revealed dense dislocation networks in the interface zone, containing NbC and TiC carbides along with a small amount of Laves phases (<2 wt. %). The interfacial region exhibited equiaxed grains (average size – 45 μm), while columnar grains (average sizes – 55 and 85 μm) were observed in the pure IN718 and 316L alloy regions, respectively. Vickers microhardness (HV) measurements indicated that the hardness of the interface zone fell between the hardness values of the pure alloy regions.

Onuike B. et al. [12] investigated the IN718/GRCop-84 system (GRCop-84 being a heat-resistant bronze alloy) using a direct laser deposition process. Two approaches to producing multi-material samples were studied: direct deposition of GRCop-84 on IN718 and compositional gradation of the two alloys. The second approach yielded samples with fewer defects, while the first approach did not produce positive results. Metallographic studies revealed that the interface contained columnar grain structures and an accumulation of Cr₂Nb intermetallides. The thermal conductivity of the IN718/GRCop-84 multi-material samples was approximately 250 % higher compared to the pure IN718 alloy.

Marques A. et al. [13] made a sample representing a combustion chamber of a rocket engine, with cooling channels made of pure copper and the body constructed from the IN718 heat-resistant nickel alloy. The areas composed of pure IN718 alloy exhibited minimal defects, while defects were observed in the copper channels, distinguishable by their distinctive 200 μm width. The interface zone width was approximately 25 μm, and no intermetallic compounds were identified.

Ringel B. et al. [14] also produced a sample, a burner nozzle, using the IN718/CuCr1Zr multi-material system (CuCr1Zr being a heat-resistant bronze alloy). The cooling channels were made of CuCr1Zr, and the housing was composed of IN718. While the sample exhibited some defects, it demonstrated good processability. The width of the interface zone varied with its inclination relative to the build direction. The multi-material product structure contributed to enhanced heat transfer. The authors underscored the necessity for multi-material fabrication equipment.

Repnin A. et al. [15] investigated the impact of 3D printing parameters on the interface zone porosity in VZh159–CuCr1Zr multi-material samples, as well as the effects of heat treatment on microstructure, chemical composition, and phase compositions. The study revealed that a substantial increase in input energy was effective in reducing interface zone porosity in multi-material samples. However, common heat treatment processes applied to CuCr1Zr and VZh159 alloys did not significantly affect the microstructure, chemical composition, and phase compositions of the interface zones. The authors estimated the size of the interface zones at 300 μm when CuCr1Zr is deposited on VZh159. Unfortunately, the study did not include mechanical testing of the samples to identify the effects of a multi-material structure on material properties.

The literature review suggests that SLM can be employed to produce low-defect multi-material products, particularly in systems such as steel-bronze, steel-heat-resistant nickel alloy, and heat-resistant nickel alloy-heat-resistant bronze. However, the latter system remains poorly studied, lacking information on its mechanical properties at both room and elevated temperatures. Thus, the objective of this study is to investigate the mechanical properties of the heat-resistant nickel alloy-heat-resistant bronze system (VZh159–CuCr1Zr) obtained through SLM. To fulfill this objective, the following tasks were undertaken: conducting tensile and compressive strength tests on the multi-material samples, performing fractography after tensile tests, analyzing polished sections post-compression, and comparing the measured mechanical properties with available data.

Materials and methods

We used an SLM 280HL 3D printer (SLM Solutions, Germany) for the fabrication of multi-material samples comprising VZh159–CuCr1Zr alloys, which were subsequently subjected to tensile and compressive strength tests. The samples were constructed using VZh159 and CuCr1Zr spherical powders (Fig. 1, Table 1), both of which were produced through atomization. Particle size distribution for the powders was determined employing the laser diffraction method with an Analysette 22 NanoTec plus system (Fritsch GmbH, Germany). The particle size distributions for the VZh159 and CuCr1Zr alloys are as follows (μm): d₁₀ = 17, d₅₀ = 32, d₉₀ = 55 and d₁₀ = 14, d₅₀ = 29, d₉₀ = 52.

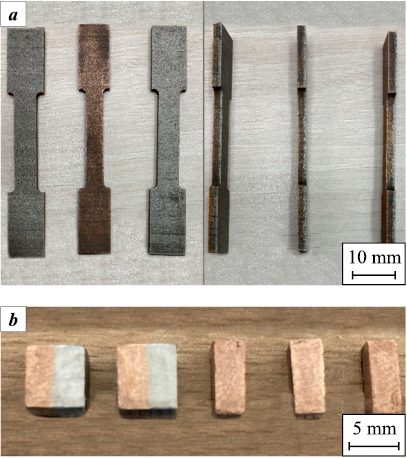

The VZh159–CuCr1Zr multi-material samples were produced using SLM, involving 3D printing of the CuCr1Zr alloy onto the VZh159 alloy. To minimize defects in the interface zone (12 layers), the printing settings were adjusted from the standard settings for VZh159 [16] and CuCr1Zr alloys [17]. Table 2 details the SLM settings for the VZh159–CuCr1Zr multi-material sample printing. Fig. 2 illustrates the samples post-fabrication. For the tensile tests, the sample dimensions are as follows (mm): tested area width – 5, length – 20, thickness – 2 (1 mm each of VZh159 and CuCr1Zr alloys along the entire length of the sample), width of the grips – 8.2, length of the grips – 15. The dimensions for the compressive strength tests are as follows (mm): height – 7, width – 4.5, thickness – 6 (3 mm of VZh159–CuCr1Zr alloys along the entire height of the sample). The compressive test samples made of the CuCr1Zr alloy have the following dimensions (mm): height – 8.3; width and thickness – 3.

The heat treatment conditions for the VZh159–CuCr1Zr multi-material samples adhered to the standard VZh159 heat treatment procedures [18]. The heat treatment comprised five stages:

1) heating to 800 °C (10 °C/min heating rate);

2) holding for 8 h;

3) cooling to 700 °C in the furnace;

4) holding for 10 h;

5) air cooling.

It’s noteworthy that conducting heat treatment to enhance the properties of both alloys is challenging due to the disparities in their structural and phase compositions. In the VZh159–CuCr1Zr system, the VZh159 alloy exhibits higher strength. Consequently, applying heat treatment to this alloy is more suitable. The standard heat treatment conditions for the VZh159 alloy do not alter the properties of the CuCr1Zr alloy or the interface zone between the alloys.

For mechanical testing, Zwick/Roell uniaxial floor-standing testing machines (Zwick Roell Group, Germany) were employed. Tensile tests were conducted on a Z050 machine (Zwick/Roell) at a 0.3 mm/min tensile rate, while compressive strength tests were performed on a Z100 machine (Zwick/Roell) at a 0.25 mm/min compression rate. Fractographic studies of the samples were carried out using a Mira 3 scanning electron microscope (Tescan, Czech Republic). The polished section with a crack that occurred after the compressive strength test was examined using a Leica DMi8 M optical microscope (Leica Microsystems, Germany). For phase composition analysis, a Rigaku SmartLab X-ray diffractometer (Rigaku Corporation, Japan) with a 100 μm pinhole was employed.

Results and discussion

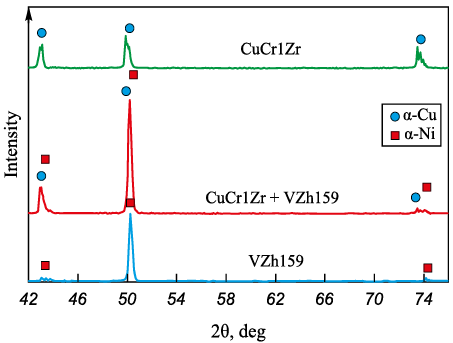

Fig. 3 displays the X-ray diffraction patterns of the VZh159–CuCr1Zr multi-material sample in the pure alloy zones and the interface zone. The phase compositions in the pure alloy zones are characterized by solid solutions. In the XRDs of the interface zone, peaks are evident, indicating the presence of both alloys. The X-ray beam size was approximately 150 μm, fitting entirely within the interface zone (with a size of approximately 300 μm). The peaks in the interface zone overlap and cannot be distinctly separated, a phenomenon consistent with findings in other studies [12]. The XRD analysis did not reveal the presence of any additional phases.

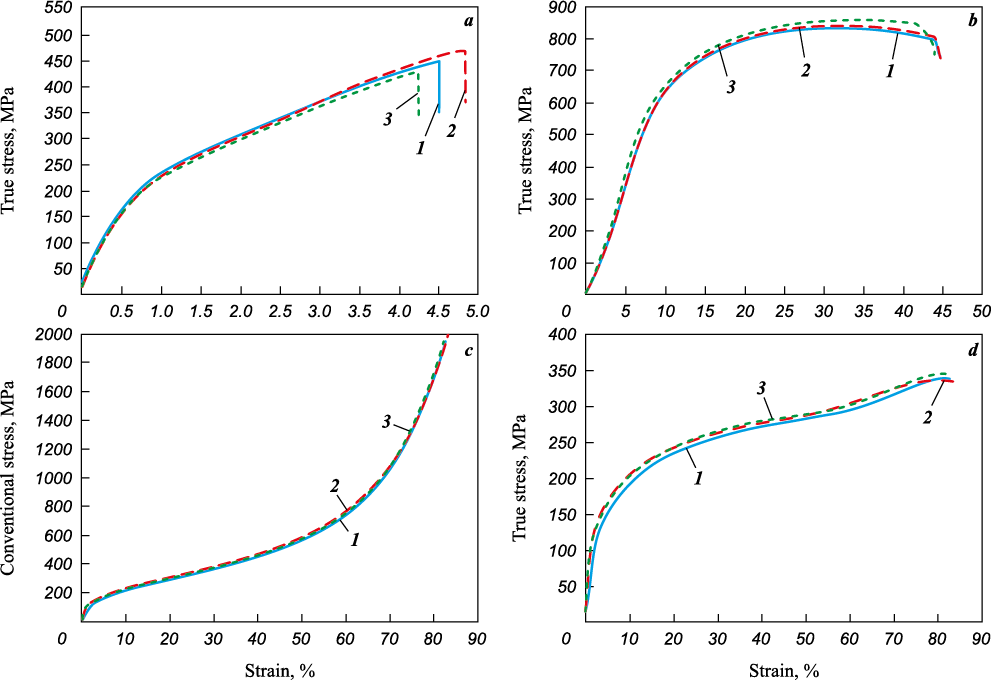

Fig. 4 presents the results of tensile and compressive strength tests conducted on the VZh159–CuCr1Zr multi-material samples, along with pure CuCr1Zr alloy compressive strength tests. Table 3 provides a comparison of these test results with available data. The tensile strength of the VZh159–CuCr1Zr multi-material samples was σ_u = 430 ± 20 MPa, and the relative elongation was ε = 4.6 ± 0.3 % (see Table 3). The compressive test results were as follows: σ_u = 822 ± 23 MPa, relative compression ε = 42.5 ± 1.5 %.

Comparing the tensile test results with available data (Table 3) reveals an increase in ultimate strength by approximately 53 % relative to the pure CuCr1Zr alloy and a decrease by approximately 65 % relative to the pure VZh159 alloy. However, direct comparisons may lack precision due to variations in sample shapes and sizes among different researchers. Additionally, stress analysis considers the total cross-section containing both alloys, each comprising 50 % of the samples. Reassessing stress for the alloy with a greater impact on strength, the resulting tensile strength doubles to 860 MPa, reducing the relative difference to the pure VZh159 alloy to approximately 29 %. It’s essential to note that available data [19] pertain to samples subjected to hot isostatic pressing (HIP), a process enhancing mechanical properties, which was not conducted in this study.

The relative elongation of the VZh159–CuCr1Zr multi-material samples in the tensile tests, when compared to the pure CuCr1Zr and VZh159 alloys, reduces by 66 % and 83 %, respectively (see Table 3). This notable decrease can be attributed to the halving of the volume of the VZh159 alloy, which has a more pronounced effect on strength. Consequently, the size and number of defects in this alloy exert a greater influence on the reduction of its mechanical properties.

Comparing the results of the compressive strength test for the VZh159–CuCr1Zr multi-material samples with the available data (see Table 3) indicates a decrease in tensile strength by approximately 57 % (or 55 %) and a reduction in relative compression by 9 % (or 22 %) compared to Inconel 718 (analogous to VZh159). Similar to the analysis of tensile strength, it’s important to note that stress analysis considered the entire cross-section containing both alloys in a 1:1 ratio. After adjusting stresses for the alloy with a greater impact on strength, the reduction in ultimate strength in the specimens is 14 % and 9 %, respectively. Smith D. et al. [20] and Ghorbanpour S.et al. [21] present data for samples after HIP.

We also compared the compressive strength of the pure CuCr1Zr alloy (see Fig. 4, c) with available data. Our findings indicate that the properties of our samples are not inferior to those described in other studies. The offset yield strength (σ_0.2 true stress) of the VZh159–CuCr1Zr multi-material samples (Fig. 4, b) is approximately 80 % higher than that of the pure CuCr1Zr alloy (Fig. 4, d). Fig. 5 illustrates the VZh159–CuCr1Zr multi-material samples after the tensile and compressive strength tests.

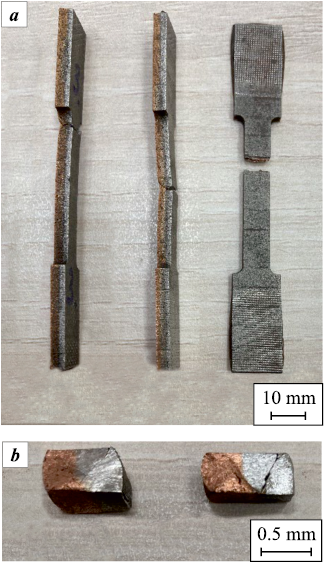

Fig. 6 displays a fractography results of a VZh159–CuCr1Zr multi-material sample after the tensile test. In the CuCr1Zr alloy region, pits of various sizes and pores are evident, but microcracks are not present. The VZh159 alloy region exhibits a smooth fracture surface with some microcracks, suggesting that this region is more brittle compared to the CuCr1Zr region. In the interface zone, there are pits and an absence of a smooth surface, along with some microcracks. This observation implies that the interface zone exhibits both more ductile fracture features characteristic of the CuCr1Zr alloy (pits and no smooth surface) and less ductile fracture features characteristic of the VZh159 alloy (microcracks).

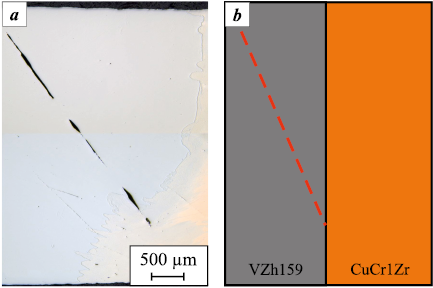

Fig. 7 shows a polished section of VZh159–CuCr1Zr multi-material samples after the compressive strength tests, along with an approximate crack pattern. The crack is oriented at 45° to the direction of load application in the VZh159 region. The crack ceases in the interface zone and does not propagate into the CuCr1Zr region. This observation suggests that the presence of a more ductile CuCr1Zr alloy in the interface zone contributes to the cessation of crack propagation.

Conclusions

In our investigation of the VZh159–CuCr1Zr multi-material system, we explored the phase composition of the interface zone and assessed mechanical properties, including ultimate strength, relative elongation, and relative compression through tensile and compressive strength tests. Additionally, we conducted fractography following tensile tests and analyzed crack propagation post-compressive strength tests. Our findings led to the following conclusions:

1. The phase compositions in the pure alloy zones are solid solutions. XRD patterns of the interface zone exhibit peaks corresponding to both alloys.

2. The tensile strength of the VZh159–CuCr1Zr multi-material samples, as determined by tensile tests, is σ_u = 430 ± 20 MPa, with a relative elongation of ε = 4.6 ± 0.3 %. The results of the compressive strength test were as follows: σ_u = 822 ± 23 MPa, and relative compression ε = 42.5 ± 1.5 %.

3. Tensile tests revealed that the ultimate strength of the VZh159–CuCr1Zr multi-material samples, when compared to the pure CuCr1Zr alloy, is approximately 53 % higher (according to available data), and the conditional yield strength increases by ~80 %.

4. The fractography of the VZh159–CuCr1Zr multi-material sample after tensile tests indicates that the interface zone displays both more ductile fracture features characteristic of the CuCr1Zr alloy (pits and no smooth surface) and less ductile features characteristic of the VZh159 alloy (microcracks).

5. Examination of the polished section of a VZh159–CuCr1Zr multi-material sample after compressive strength tests demonstrates that the presence of a more ductile CuCr1Zr alloy in the interface zone contributes to arresting the crack, which propagates at 45° to the direction of load application in the VZh159 alloy region.
