Comparison of properties of hard magnetic isotropic powder-processed Fe–Cr–Co alloys doped with titanium and titanium hydride

Introduction

Hard magnetic alloys are among the most important materials in modern manufacturing, and the demand for them continues to grow. However, the majority of such alloys have high production costs due to the expensive components they contain, such as rare-earth metals and cobalt. Fe–Cr–Co-based hard magnetic materials contain less cobalt and therefore represent a more economical alternative. These materials exhibit a sufficient level of magnetic properties, although they are inferior in this regard to many other magnetic systems [1–3]. The main advantages of Fe–Cr–Co alloys include the highest ductility among all hard magnetic materials, high strength and corrosion resistance, thermal stability, and a wide operating temperature range [4–8]. Recent studies on Fe–Cr–Co alloys have increasingly employed various approaches, primarily based on powder metallurgy and additive manufacturing technologies [9–18]. There is also ongoing research into the characteristics of magnetic films based on these alloys, which are used in non-contact sensors for various devices [19; 20].

In Fe–Cr–Co hard magnetic alloys, spinodal decomposition occurs at temperatures around 650 °C, during which the body-centered cubic (BCC) α-phase separates into two BCC phases, α₁ and α₂, differing in chemical composition. During heat treatment – specifically, slow cooling from ~650 °C – ferromagnetic α₁-phase particles become uniformly distributed in the weakly magnetic α₂-phase matrix, leading to the development of magnetic properties in the alloy [21–23]. The parameters of the heat treatment process require careful control, as prolonged annealing or slow cooling can result in the formation of an equilibrium nonmagnetic σ-phase with a tetragonal crystal structure [24].

The properties of Fe–Cr–Co alloys can be modified by introducing various alloying elements, such as Mo, Si, W, Ti, and others [25–28]. When using powder metallurgy methods, a number of additional factors must be considered for alloying additives, including their solubility in the solid solution of the base elements (Fe, Cr, and Co), their reactivity with oxygen from the air trapped in the pores of the green compacts, and the characteristics of the initial powders. As shown in our experiments, the properties of the resulting material depend on the form in which the doping elements are introduced into the initial powder mixture [29].

The present study focuses on a comparative investigation of the properties of isotropic powder metallurgy Fe–Cr–Co alloys doped with titanium introduced either as conventional titanium powder or as titanium hydride powder. Dehydrogenation of the latter begins at approximately 450 °C and is expected to occur during the heating stage and throughout the sintering process. The study was conducted on alloys with the following compositions (wt. %): Fe–28Cr–15Co and Fe–32Cr–22Co, representing medium and high cobalt contents, respectively. Each alloy was doped with 2 wt. % of the above-mentioned titanium powders. The density, phase composition, as well as the magnetic and mechanical properties of the resulting compositions were investigated.

Materials and methods

To prepare the initial powder blends for the Fe–Cr–Co alloys, elemental powders of iron (carbonyl iron, grade VS), chromium (grade PX-1M), and cobalt (grade PK-1) with particle sizes of d < 25 µm were used. Titanium was introduced into the system in two forms: titanium powder (PTS-1 grade) with d < 45 µm, and titanium hydride powder obtained by hydrogenating titanium sponge (grade TG-100, GOST 17746–96), followed by milling to a powder with d < 45 µm. Depending on the alloy composition (Fe–28Cr–15Co and Fe–32Cr–22Co) and the titanium source, the materials are hereafter designated as Kh28K15T_H, Kh28K15T_P, Kh32K22T_H, and Kh32K22T_P, where the subscripts “H” and “P” indicate titanium hydride and titanium powder (PTS-1), respectively. The powders were mixed in a Turbula shaker mixer C2.0 (Russia) for 300 min. For every 100 g of powder blend, 200 g of 3 mm diameter steel balls were added to the mixing container. Cylindrical green compacts weighing 20 g and measuring 13.6 mm in diameter were formed using a Knuth HP15 hydraulic press (Germany) under a compaction pressure of 600 MPa. The compacts were then sintered in a ShSV-1.2.5/25I1 electric vacuum furnace (Russia) at a pressure below 10\(^–\)² Pa and a temperature of 1350 °C, with an isothermal hold time of 2.5 h. After sintering, the density of the samples was determined using the hydrostatic weighing method in distilled water.

Subsequently, the alloys were heated to 1300 °C and quenched in water. After quenching, heat treatment was performed in a tube furnace to achieve a high-coercivity state. For each sample, four heat treatment modes were tested by varying the initial temperature (t₁). The heat treatment process consisted of the following three stages:

1) isothermal holding for 40 min at t₁ = 630÷655 °C;

2) cooling by 60 °C from t₁ at a rate of v₁ = 20 °С/h;

3) cooling to 500 °C at a rate of v₂ = 8 °С/h.

No external magnetic field was applied during the heat treatment.

Microscopic investigations were conducted using a TESCAN VEGA3 scanning electron microscope (Czech Republic). Elemental composition was analyzed by energy-dispersive spectroscopy (EDS) with an X-Act microanalyzer (Oxford Instruments, UK). The phase composition of the samples was examined by X-ray diffraction (XRD) using a Difrey-401 diffractometer (Russia) with CrK_α radiation, in the 2θ range of 35 to 125°. Magnetic hysteresis properties were measured using a Permagraph L hysteresisgraph (Magnet-Physik, Germany). Compression tests were performed using an Instron 3382 testing machine (Instron, USA) at a loading rate of 1 mm/min. For testing, cylindrical samples were machined to a diameter of 7 mm and a height of 15 mm.

Results and discussion

Table 1 presents the density values (ρ) of the titanium-doped powder Fe–Cr–Co alloys after sintering, as measured by the hydrostatic weighing method. The theoretical density (ρ_t) was calculated based on the principle of additivity: the density of each alloy component was multiplied by its respective weight fraction, and the results were summed. Based on these data, the relative density (ρ_rel) and residual porosity of the sintered samples were determined.

The results revealed noticeable differences in the density of the samples depending on whether titanium powder or titanium hydride powder was used for doping. According to the measured ρ values, the use of titanium hydride powder as the titanium source leads to an increase in porosity – up to 3.0–3.5 % for Kh32K22T_H samples and up to 4 % for Kh28K15T_H. According to our previous studies on powder Fe–Cr–Co alloys under the same sintering conditions, the relative density ρ_rel typically reaches approximately 98 % [11]. When titanium powder is used, the alloys exhibit a relative density of approximately 98–99%.

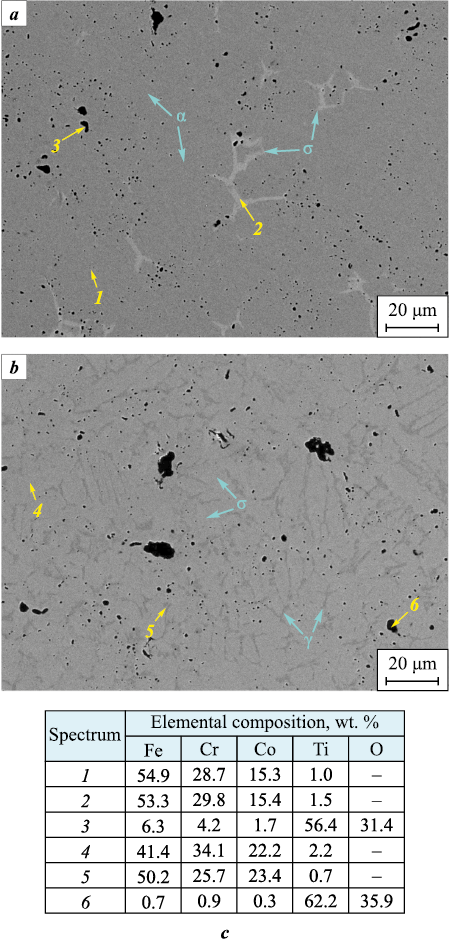

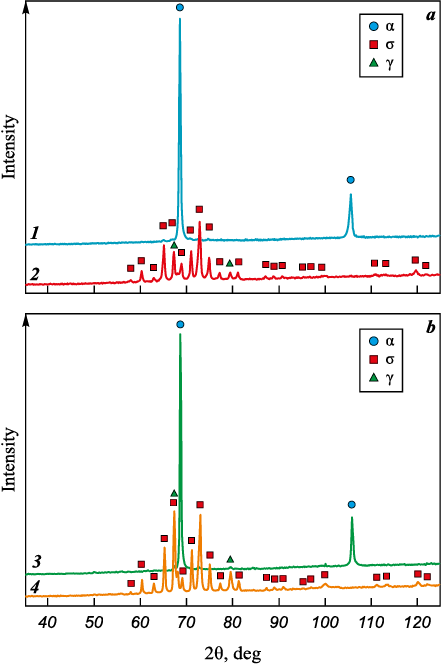

Fig. 1 shows the results of phase composition analysis of the alloys doped with PTS-1 titanium powder and titanium hydride immediately after sintering. Fig. 2 presents, as an example, microstructure images of the Kh28K15T_P and Kh32K22T_P alloys, along with the results of elemental concentration measurements obtained by EDS for different structural constituents.

According to the obtained diffraction patterns (Fig. 1), the phase composition of the Fe–28Cr–15Co and Fe–32Cr–22Co alloys differs significantly immediately after sintering. The structure of the Kh28K15T_H and Kh28K15T_P samples consists of a BCC α-phase solid solution and inclusions of the tetragonal σ-phase. In the microstructure image of the Kh28K15T_P alloy (Fig. 2, a), the σ-phase inclusions appear as white bands within the gray α-phase matrix, mainly located along grain boundaries. This is consistent with numerous studies indicating that σ-phase inclusions typically form at grain boundaries. The elemental composition of the phases is relatively similar, although the σ-phase inclusions exhibit a slightly elevated chromium concentration.

The structures of the Kh32K22T_H and Kh32K22T_P alloys consist of a σ-phase solid solution and FCC γ-phase inclusions (Fig. 1). No traces of the α-phase are observed in these samples, which can be attributed to the polymorphic nature of the α → σ transformation during cooling of Fe–Cr–Co alloys with elevated Cr and Co contents. It should be noted that the diffraction peaks in the patterns of Kh32K22T_H and Kh32K22T_P may also indicate the presence of two distinct σ-phases based on Fe–Cr and Co–Cr systems, which are compositionally similar, as well as two γ-phases. The peaks of these phases may partially or fully overlap, which complicates their identification.

In the microstructure image of the Kh32K22T_P alloy (Fig. 2, b), in contrast to Kh28K15T_P, the σ-phase–based matrix appears as the brightest structural component, while all inclusions are darker. According to the EDS data (Fig. 2, c), the inclusions show increased Fe content and reduced Cr content, which confirms the presence of the γ-phase in the sample. All oxide inclusions observed in pore regions in both alloys are titanium oxides.

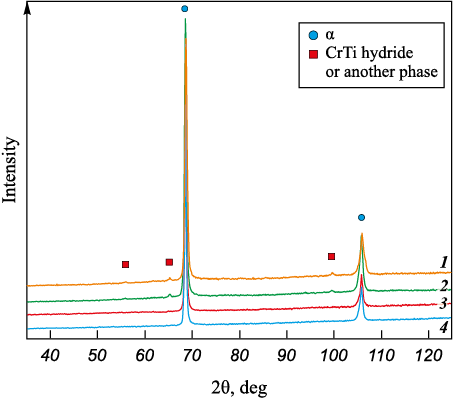

X-ray diffraction patterns of the Fe–28Cr–15Co and Fe–32Cr–22Co alloys containing different titanium sources after heat treatment are shown in Fig. 3, and their microstructure images are presented in Fig. 4. The structure of all samples represents a BCC α-phase solid solution (Fig. 3). The spinodal decomposition into α₁ and α₂ phases that occurs during thermal treatment was not detected in the diffraction patterns due to peak broadening. In the patterns of Kh28K15T_H and Kh32K22T_H, diffraction peaks of a secondary phase are also present, which may correspond to iron or cobalt oxides. However, according to earlier EDS analysis and elemental mapping [30], all oxide inclusions in the structure are titanium oxides. In addition, among the main components of Fe–Cr–Co alloys, chromium is known to oxidize first.

Additional analysis indicated that the diffraction peaks of the secondary phase may also correspond to a hydride of a Ti–Cr-based intermetallic compound, which may partly account for the formation of the porous structure observed in the samples containing it (Fig. 4, a, b). However, the initial amount of titanium hydride in the system is small. Hydrides of Ti–Cr-based compounds are also characterized by low stability, so it cannot be conclusively identified which specific compound is responsible for the secondary phase peaks observed in the obtained alloys. Notably, these peaks may already be present in the diffraction patterns after sintering (see Fig. 1, b); however, at positions such as 2θ = 66° and 100°, they are overlapped by the σ-phase peaks, which further complicates their identification.

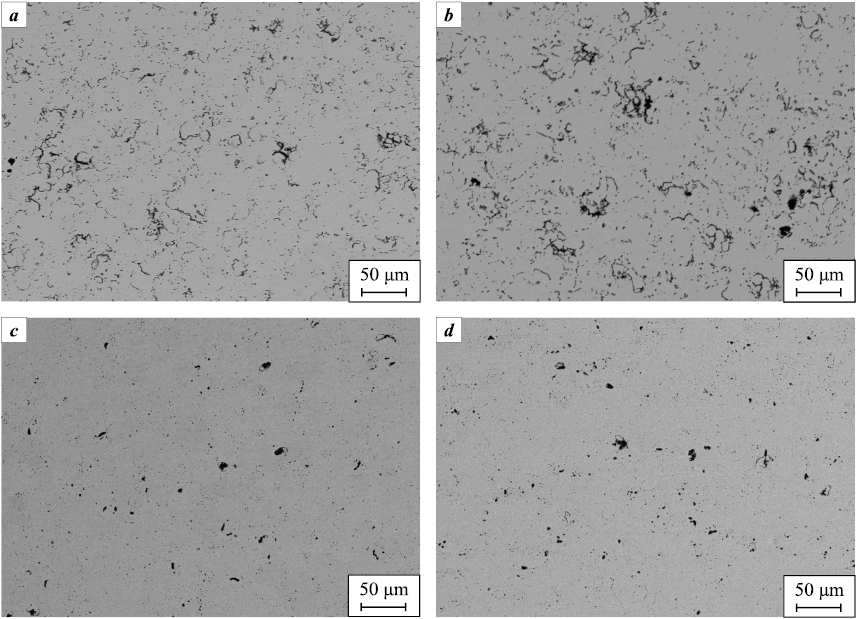

Microstructural analysis of the samples revealed noticeable differences in the porous structure depending on the titanium source. As seen in Fig. 4, a, b, the samples containing titanium hydride exhibit numerous elongated dark inclusions forming a branched porous network, indicative of incomplete sintering. This type of structure is considered intermediate and may have resulted from incomplete dehydrogenation of titanium during the sintering heating process. Rapid healing of open pores may have trapped hydrogen within the material, thereby impeding the removal of residual porosity and promoting the formation of elongated inclusions under internal pressure.

In the alloys with PTS-1 titanium powder, the pore structure is characterized by dark inclusions 5–10 μm in size, fairly uniformly distributed throughout the matrix, along with significantly smaller pores approximately 1–2 μm in size (Fig. 4, c, d). The alloys with titanium hydride (Fig. 4, a, b) exhibit a visibly higher number and volume of inclusions compared to those with titanium powder (Fig. 4, c, d), which correlates with the lower relative density values measured for these samples. In addition, the smaller inclusions in Fig. 4, c, d tend to cluster, suggesting incomplete pore closure during sintering.

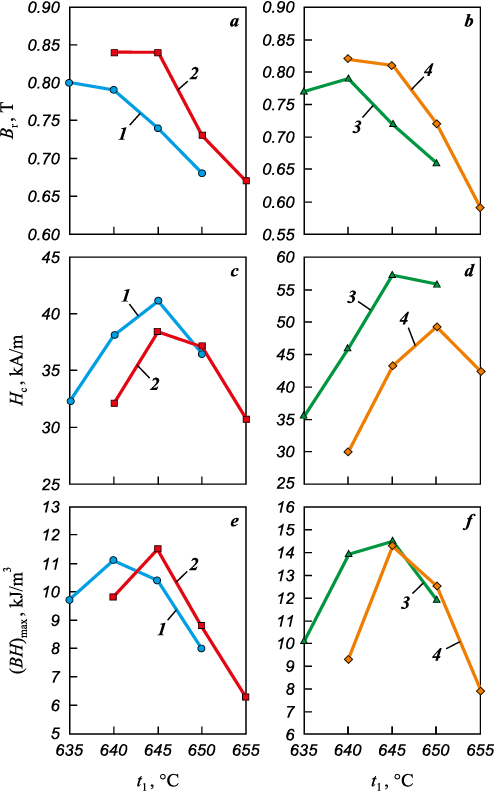

The magnetic property analysis revealed significant differences in B_r, H_c, and (BH)_max values depending on the titanium source. The heat treatment dependence of the magnetic properties is shown in Fig. 5. The use of titanium hydride led to increased maximum coercivity (H_c up to 41.1 and 57.2 kA/m for Kh28K15T_H and Kh32K22T_H, respectively) and reduced residual induction (B_r up to 0.8 and 0.79 T), compared to Kh28K15T_P and Kh32K22T_P alloys (up to 0.84 and 0.82 T, respectively). The lower B_r values are mainly attributed to increased porosity in the samples with titanium hydride.

The temperature dependence of residual induction (Fig. 5, a, b) is nearly identical for all alloys: as t₁ increases, Br values decrease monotonically, similar to the behavior observed in many other isotropic Fe–Cr–Co alloys. The observed increase in coercivity is likely associated with a higher density of defects and internal stresses in the structure due to incomplete titanium dehydrogenation. The temperature dependence of H_c for all alloys exhibits a maximum at t₁ ~ 645÷650 °C (Fig. 5, c, d). For both Hc and Br , even a 5 °C change in t₁ can have a pronounced effect on their values, highlighting the sensitivity of spinodal decomposition and the final magnetic properties of the alloys to the processing conditions. The (BH)_max curves (Fig. 5, e, f) for alloys with different titanium sources are relatively similar, as the improvement in one magnetic parameter is offset by the decline in another. The highest values of (BH)_max reached 11.0–11.5 kJ/m³ for both Kh28K15T_H and Kh28K15T_P, and 14.0–14.5 kJ/m³ for Kh32K22T_H and Kh32K22T_P.

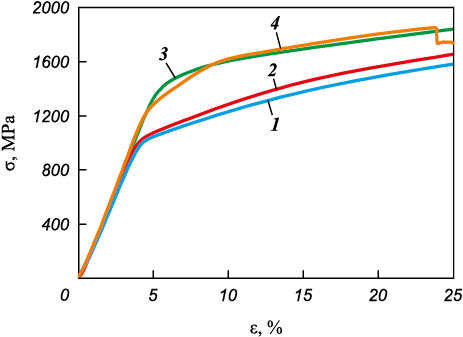

A comparison of the mechanical properties of the investigated Fe–Cr–Co alloys containing different titanium sources was carried out. The samples with the best set of magnetic properties were subjected to compression testing. The experimental stress–strain curves are shown in Fig. 6, and the results of mechanical property evaluation are presented in Table 2. The tests were conducted up to a strain of 25 % (ε).

Analysis of the stress–strain curves (Fig. 6) shows that all the titanium-doped alloys investigated in this study exhibit good ductility. With the exception of Kh32K22T_P, all other samples underwent deformation up to a strain of 25 % without fracture. An increase in chromium and cobalt content in the alloys resulted in a rise in yield strength (σ_0.2) from 1000 to 1200–1400 MPa (Table 2). At the same time, the stress–strain curves of the alloys with different titanium sources show only minor differences, despite noticeable variations in porosity and magnetic properties (Fig. 6).

Conclusions

Based on the results of this study on powder-processed hard magnetic Fe–Cr–Co alloys doped with titanium from different sources, the following conclusions can be drawn.

1. Doping with titanium hydride powder leads to an increase in residual porosity from 2 to 4 %. Phase composition analysis revealed the presence of a secondary phase, most likely a hydride of a Ti–Cr-based intermetallic compound. Microstructural analysis showed that the pore structure in the alloys containing titanium hydride is branched, which is typical of incomplete sintering. This suggests that the increased porosity is primarily due to incomplete dehydrogenation of titanium hydride during the heating stage of sintering.

2. Magnetic property measurements demonstrated that samples doped with PTS-1 titanium powder exhibited higher residual induction values (B_r up to 0.84 T) compared to those doped with titanium hydride, which is attributed to lower residual porosity. Conversely, the titanium hydride–doped samples showed higher coercivity values (H_c up to 57.2 kA/m).

3. Compression tests showed that, despite differences in density and magnetic properties, the stress–strain curves of alloys with different titanium sources were nearly identical. The Fe–32Cr–22Co–2Ti samples exhibited higher yield strength (σ_0.2 = 1200÷1400 MPa) compared to the Fe–28Cr–15Co–2Ti samples (σ_0.2 = 1000 MPa). All titanium-doped alloys investigated in this study showed good ductility, with most of them deforming up to 25 % strain without fracturing.
