High-entropy coatings in the FeCrNiCo–Mo_x system with enhanced corrosion and tribocorrosion resistance in seawater

Introduction

Currently, over 50 % of the world’s population lives within 60 km of the coastline [1]. More than 80% of global trade is conducted by sea [2; 3]. Human economic activity in the marine and coastal zones is closely linked to the production and operation of marine transport vessels and coastal infrastructure. Steel, due to its high specific strength, wide availability, and favorable economic characteristics, is one of the primary structural materials used for these purposes [4; 5]. However, the challenges of using structural steels in seawater arise not only from corrosion but also from tribocorrosion – a phenomenon that combines mechanical wear and corrosion degradation [6; 7]. Tribocorrosion causes the most damage to friction pairs, such as bearings, shafts, rods, swivels, etc. [8], leading to a significant reduction in the service life of structures and resulting in substantial economic losses. In industrialized countries, the economic impact of tribocorrosion can account for up to 3–4 % of GDP [9; 10].

The primary method of corrosion control in marine environments is alloying steel with chromium and molybdenum due to their ability to form a dense passive film on the surface [11–13]. This film acts as a barrier, preventing contact between the metal and the aggressive environment, thereby protecting against further degradation. However, a recently discovered class of high-entropy alloys (HEAs) has outperformed traditional chromium- and molybdenum-enriched stainless steels in terms of tribocorrosion resistance [14–16]. Fe-based HEAs (Fe–Cr–Ni–Co–X) are promising materials for use in the marine industry due to their excellent mechanical and corrosion properties. Chromium promotes the formation of a stable and dense passive film, with high chromium content enhancing resistance to pitting corrosion. Nickel contributes to resistance against both general and localized corrosion and serves as an austenite stabilizer. Cobalt also plays a role in stabilizing the oxide film. However, the key element ensuring the formation of a dense and high-quality passive film, especially in the presence of chromium, is molybdenum.

The cost of high-entropy alloys is relatively high due to the substantial content of expensive alloying elements and the complex manufacturing process. Additionally, some HEAs have shown a tendency toward brittle behavior under certain conditions [17].

The most promising application of high-entropy alloys for corrosion protection is not in the fabrication of entire structural components from HEAs but in their use as surface coatings. Currently, HEA-based coatings are primarily produced by methods such as laser cladding, electro-spark deposition, magnetron sputtering, and others [18; 19].

Electro-spark deposition (ESD) in a vacuum using CNC-controlled equipment is one of the most promising methods for producing wear-resistant and corrosion-resistant coatings on various steels due to its improved uniformity and purity [20]. This method can produce relatively thick coatings, up to 200 µm [18; 21], with excellent adhesion strength due to micrometallurgical reactions between the electrode and the substrate. Additionally, this coating technology is characterized by its relative simplicity, cost-effectiveness, high productivity, ease of process automation, and the capability for localized coating deposition. During vacuum electro-spark deposition, material transfer from the electrode to the substrate and pulsed cathode-arc evaporation of the electrode, initiated by spark discharge, occur simultaneously. This enhances process efficiency and improves surface wettability, resulting in lower coating roughness [10].

The aim of this study was to investigate the influence of molybdenum on the structure, corrosion, and tribocorrosion properties of coatings based on the FeCrNiCo–Mo_x high-entropy alloy.

Materials and methods

The FeCrNiCo–Mo_x were deposited using a specialized vacuum system for electrospark deposition, equipped with a three-axis table and a rotating electrode holder [22]. the electrodes used for the coatings were produced by powder metallurgy from a base equiatomic mixture of CrNiCo with addition of 5, 10, and 15 at. % Mo. Iron was introduced into the coatings through the mixing of the substrate and electrode material during the electrospark deposition process.

Fig. 1 shows SEM images of high-purity (>99 %) metal powders of Cr (PKh-1S, <63 µm), Ni (PNK-0T2, <20 µm), Co (PK-1u, <1.2 µm), and Mo (PM99.95, <5 µm), which were used to prepare the initial mixture for electrode production. the powders were mixed in a ball mill for 4 h. Blanks were produced from the mixture by cold pressing, followed by sintering in a vacuum furnace at 1300 °C for 60 min (with a residual pressure in the vacuum chamber not exceeding 1·10\(^–\)² Pa). After sintering, the electrode blanks were ground to produce rods 60 mm in length and 6 mm in diameter.

Before deposition, the vacuum chamber was evacuated to a pressure of 5·10\(^–\)³ Pa, after which Ar (99.993 %) was introduced to maintain a working pressure of 20 Pa. the coatings were deposited under the following parameters: electrode rotation speed – 1000 rpm, scanning speed and step – 500 mm/min and 0.5 mm, respectively. After each processing cycle, the scanning direction was changed to perpendicular to ensure better coverage and uniformity of the coatings.

The FeCrNiCo–Mo_х coatings were deposited onto 30 mm diameter, 3 mm thick discs made of 30Kh13 steel under the following technological parameters: pulse frequency – 500 Hz, voltage – 50 V, pulse duration – 50 µs, electrode polarity – anodic.

Phase composition of the coatings was studied using X-ray phase analysis (XRD) on a D8 Advance diffractometer (Bruker, Germany) with monochromatic CuK_α radiation in the 2θ angle range from 10 to 100°.

Morphology and microstructure of the coatings were examined using a scanning electron microscope (SEM) S-3400N (Hitachi, Japan) equipped with an energy-dispersive spectrometer (EDS) NORAN (Thermo Scientific, USA).

Electrochemical properties of the coatings were studied in a three-electrode cell using an IPC Pro MF potentiostat (Russia). A platinum electrode was used as the auxiliary electrode, and an Ag/AgCl electrode served as the reference. the corrosion current density and potential were determined by extrapolating the polarization curves using the Tafel method.

Tribocorrosion resistance of the coatings was evaluated using a Tribometer (CSM Instruments, Switzerland) equipped with a special rotating cell that allows the registration of the electrochemical corrosion potential during tribological tests in a ball-on-disk configuration. the tests were conducted in artificial seawater at a load of 5 N, a distance of 500 m, and a sliding speed of 10 cm/s. the artificial seawater was prepared according to ASTM D1141-98 from the following salts (g/L): NaCl (24.53), MgCl₂ (5.20), Na₂SO₄ (4.09), CaCl₂ (1.16), KCl (0.695), NaHCO₃ (0.201), KBr (0.1), H₃BO₃ (0.027), SrCl₂ (0.003), NaF (0.003).

An alumina (Al₂O₃) ball with a diameter of 6 mm and a roughness of R_a = 0.8 µm was used as the counterbody. the wear tracks on the coatings were examined using optical profilometry with a WYKO NT1100 profilometer (Veeco, USA).

Results and discussion

Fig. 2 presents SEM cross-sectional images of the electrodes after sintering and the corresponding molybdenum distribution maps. All electrodes were characterized by high density and low residual porosity. Molybdenum in the CoCrNi–5Mo electrode was evenly distributed throughout the volume, while in electrodes with higher Mo content (10 and 15 at. %), clusters rich in molybdenum were observed.

The coatings obtained using the CoCrNi, CoCrNi–5Mo, CoCrNi–10Mo, and CoCrNi–15Mo electrodes are referred to as 0Mo, 5Mo, 10Mo, and 15Mo, respectively. Fig. 3 shows SEM images of the coating surfaces and the corresponding element distribution maps; the composition of the coatings is provided in Table 1. the surface of the coatings exhibits a characteristic morphology in the form of overlapping areas of solidified melt formed by individual electrospark deposition pulses. No cracks or other surface defects were detected on the coatings. the 0Mo coating was characterized by a uniform distribution of elements across the surface. the introduction of Mo into the coatings resulted in the formation of a less homogeneous structure. It is evident that the 10Mo and 15Mo coatings consist of two distinct areas: 1) iron-based and 2) regions with higher concentrations of Mo, Ni, and Co. Additionally, the coating with the highest molybdenum content exhibited increased surface roughness, with so-called “burns” containing large amounts of molybdenum.

Iron was the primary element in the coatings. the introduction of iron into the coatings occurred directly during electrospark deposition due to the mixing of the melts from both the electrode material and the substrate material in localized melting areas. the 10Mo coating had the lowest iron content, at 31 at. %, while in the other coatings it ranged between 41–43 at. %. This effect is likely due to more intensive transfer of the CoCrNi–10Mo electrode material. the molybdenum content in the coatings increased with its proportion in the electrodes, reaching 2 (5Mo), 5 (10Mo), and 7 (15Mo) at. %, respectively. the 10Mo coating had the highest chromium content of 24 at. %, while the other coatings showed chromium levels in the range of 20–21 at. %. the Ni and Co content in the 0Mo–10Mo coatings was 15–20 at. %, while in the coating with the highest molybdenum content, it was around 12–13 at. %. Additionally, all coatings showed a small oxygen content of about 3–5 at. %.

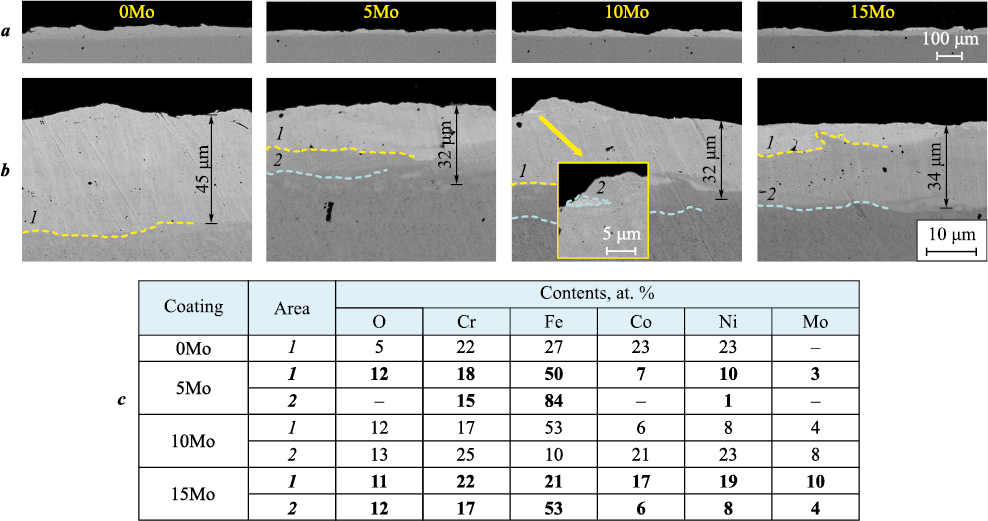

Fig. 4 shows SEM cross-sectional images of the coatings at various magnifications. the coatings exhibited high density, with no voids or cracks detected. the base FeCrNiCo coating without molybdenum had the highest thickness – up to 45 µm – while processing with molybdenum-containing electrodes reduced the thickness to 32–34 µm (5Mo–15Mo coatings). the reduction in coating thickness is associated with the altered material transfer during processing due to the introduction of refractory molybdenum, which led to a decrease in the size of the melt zone. Additionally, the molybdenum-containing coatings showed more pronounced transition areas between the substrate and the coating. the main layer of the 0Mo and 5Mo coatings was characterized by high uniformity, while the introduction of a higher amount of molybdenum into the coatings resulted in the formation of more distinct areas, rich in molybdenum and depleted in iron (Fig. 4, c). In the 10Mo coatings, these areas appeared as isolated clusters smaller than 5 µm, while in the 15Mo coating, these areas formed a discontinuous top layer.

Fig. 5 presents XRD patterns of FeCrNiCo–Mo_x coatings and the steel substrate. All coatings were characterized by a single-phase structure based on a solid solution with an FCC lattice and a strong (200) texture, formed due to the directional solidification of the melt zones. Increasing the molybdenum content in the coatings leads to a shift of the FCC peaks towards lower angles, indicating an increase in the lattice parameter due to the large atomic radius of molybdenum. It is worth noting that the 10Mo and 15Mo coatings have the same lattice parameter, which may be due to the small difference in molybdenum content (5 and 7 at. %) and the fact that when the molybdenum content exceeds a certain threshold (5 at. % in our case), additional molybdenum can no longer be incorporated into the FCC lattice and will form its own phase.

In the case of the 15Mo coating, a second set of low-intensity peaks corresponding to an α-Fe (ferrite) phase can be distinguished. On one hand, these peaks could be attributed to the substrate, which has this structure. On the other hand, given the thickness of the coatings, this assumption seems unlikely. Another possible explanation is the formation of an additional BCC phase rich in molybdenum. the presence of such regions was shown in the cross-sections of the 15Mo coating. Additionally, molybdenum has very limited solubility in the FCC phase, as it is a ferrite stabilizer. Thus, processing with the CoCrNi–15Mo electrode is undesirable, as it leads to the formation of a two-phase coating.

Fig. 6 presents the results of tribocorrosion tests of FeCrNiCo–Mo_x coatings. These tests included three stages: exposure to a corrosive environment (artificial seawater); tribological testing in a corrosive environment; and re-exposure under stationary conditions after the friction process was completed.

A key characteristic of tribocorrosion is the continuous wear of the passive film, which causes a sharp drop in corrosion potential due to the exposure of an active surface in the corrosive environment. the base 0Mo coating exhibited the highest corrosion potential during friction at –180 mV. Introducing a moderate amount of molybdenum (5Mo and 10Mo coatings) led to a more significant decrease in corrosion potential, down to –200 mV. the coating with the highest Mo content showed the highest drop in corrosion potential to –250 mV, likely due to the formation of galvanic couples between iron- and molybdenum-rich regions. the coefficient of friction for all coatings ranged from 0.2 to 0.3, with the lowest levels (0.2–0.25) observed in the 0Mo and 10Mo coatings.

The highest wear resistance was observed in the 10Mo and 15Mo coatings with higher molybdenum content – the wear rate was (2.0÷2.7)·10\(^–\)⁵ mm³/(N·m), whereas in the 0Mo and 5Mo coatings, it was (4.1÷4.8)·10\(^–\)⁵ mm³/(N·m). This effect is likely due to the strengthening of the high-entropy matrix in the 10Mo and 15Mo coatings through the formation of molybdenum-rich regions.

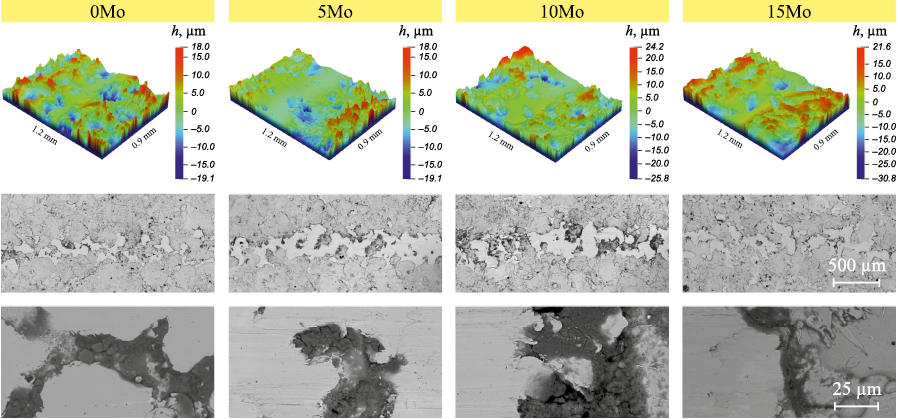

Wear tracks and the composition of wear products are shown in Fig. 7 and Table 2. the morphology of the wear tracks represents partially worn roughness, and the wear products are mainly represented by iron and chromium oxides.

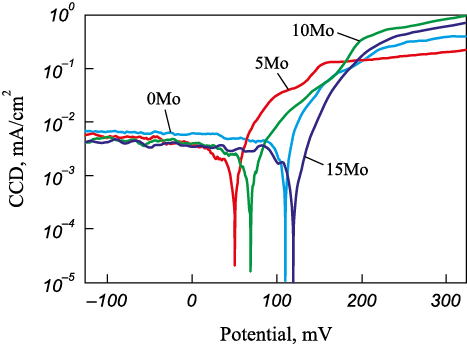

The polarization curves of the coatings with varying Mo content are shown in Fig. 8. the corrosion potential and current density of the base FeCrNiCo coatings were 70 mV and 3.5 µA/cm², respectively. the introduction of 2 at. % Mo (5Mo coating) led to a slight shift of the potential in the negative direction to 50 mV, but at the same time, the corrosion current density decreased by almost a half (2 µA/cm²). Further increasing the molybdenum content to 5–7 at. % (10Mo, 15Mo) caused an increase in the electrochemical potential to 110–120 mV; however, the corrosion current density increased to 4.0–4.5 µA/cm². Thus, the introduction of a small amount of molybdenum into FeCrNiCo leads to a reduction in corrosion current density, while further increases in molybdenum content primarily result in a significant shift in corrosion potential towards positive values.

This electrochemical behavior can be explained as follows. the introduction of a small amount of molybdenum (2 at. %) does not lead to the formation of molybdenum-rich regions, so the surface potential remains almost unchanged. Nevertheless, molybdenum in such quantities, especially when paired with chromium, contributes to the formation of a denser passive film, which improves the corrosion resistance of the 5Mo coatings. A higher molybdenum content in the coating leads to the formation of regions (possibly phases) rich in molybdenum, which shifts the surface potential in a more positive direction. However, the presence of surface heterogeneities intensifies corrosion processes.

Conclusions

1. High-entropy coatings with thicknesses up to 45 µm in the FeCrNiCo–Mo_x system with varying molybdenum content were successfully obtained using electrospark deposition in a vacuum. the introduction of a moderate amount of molybdenum in the range of 2–5 at. % into FeCrNiCo-based coatings has shown promise for enhancing their corrosion and tribocorrosion resistance in seawater.

2. All coatings with molybdenum content up to 5 at. % were single-phase solid solutions with an FCC lattice. the addition of higher amounts of molybdenum (7 at. %) led to the formation of a second phase based on molybdenum with a BCC lattice.

3. Under stationary corrosion conditions, the coating with 2 at. % Mo exhibited the highest corrosion resistance, with a corrosion current density and potential of 2 µA/cm² and 50 mV, respectively. the introduction of higher amounts of molybdenum (5–7 at. %) led to a shift in potential towards positive values, up to 120 mV, due to the formation of molybdenum-rich regions. However, the intensified local corrosion caused the corrosion current density to reach 4.5 µA/cm².

4. Under tribocorrosion conditions, coatings with moderate molybdenum content (up to 5 at. %) demonstrated a corrosion potential drop to –180 to –200 mV and a coefficient of friction around 0.25. the addition of higher amounts of molybdenum led to a more significant potential drop (down to –250 mV) and a higher coefficient of friction (up to 0.3). the coating with 5 at. % molybdenum exhibited the highest wear resistance, with a specific wear rate of 2·10\(^–\)⁵ mm³/(N·m).
